Matrix Server

Matrix is a decentralized messaging platform that provides a secure and privacy-focused alternative to centralized messaging services like Facebook Messenger.

Unlike (for example) Facebook, Matrix is built on a decentralized network of servers and clients, which allows users to communicate securely without relying on a central authority.

In this blog post, we’ll explore the pros and cons of Matrix, compare it with other centralized messaging platforms, and discuss its advantages for privacy and decentralization. Also, we are going to cover how to self-host matrix with docker.

Why using Matrix?

Matrix is a protocol that provides:

Decentralization: Matrix is built on a decentralized network of servers and clients, which means that there is no central authority controlling the network. This provides greater security and privacy, as there is no single point of failure or vulnerability. For me this is important, as some well known messages apps are having outages and leave me uncommunicated with my loved ones.
Open Source: Matrix is an open-source platform, which means that anyone can contribute to its development or audit the code for security vulnerabilities. This provides greater transparency and accountability, which is particularly important for a messaging platform.
Interoperability: Matrix is designed to be interoperable with other messaging platforms, which means that users can communicate across different platforms without having to switch between different apps.
End-to-End Encryption: Matrix provides end-to-end encryption for messages, which means that only the sender and recipient can read the messages. This provides greater security and privacy, as messages cannot be intercepted or read by third parties.

Of course there are some ‘CONS’, but after this guide, we will have overcomed them:

~~Limited Adoption~~: Matrix is still a relatively new and niche platform, which means that it may not have as many users or features as more popular messaging apps.
- We are going to do our own matrix server hosting - for us and our close ones.
~~Technical Complexity~~: Matrix can be more technically complex to set up and use than centralized messaging apps, which may be a barrier to adoption for some users.
- The solution: following this tutorial, you get Matrix with Docker and Cloudflare will take you less than 5 minutes.
~~Dependence on Third-Party Servers~~: While Matrix is decentralized, users still need to rely on third-party servers to use the platform. This can create some dependency and potential vulnerabilities.
- The solution: DIY and own your matrix server.

Install Matrix with Docker

Now, let’s follow this detailed guide on how to install Matrix with Docker step by step (I wish I had this the first time I wanted to install Matrix in my home server).

We will be using the Matrix Synapse Docker Image from DockerHub.

We need to do some pre-configuration using the terminal. Follow this steps and it will work:

Go to the desired folder with cd (change directory) - I normally have all my config files in the directory ~/Docker:

cd ~/Docker/

Now, we will create a new folder in the directory that we just moved to and navigate to it:

sudo mkdir Matrix_Synapse & cd ./Matrix_Synapse

Then, we need to generate a config file, also using the terminal (remember to use your domain, ex: https://matrix.yourdomain.com/):

sudo docker run -it --rm \
-v ~/Docker/Matrix_Synapse/data:/data \
-e SYNAPSE_SERVER_NAME=matrix.yourdomain.com \
-e SYNAPSE_REPORT_STATS=yes \
matrixdotorg/synapse:latest generate

#or if the latest does not generate a proper configfile, try a previous one:
#sudo docker run -it --rm -v ~/Docker/synapse/data:/data -e SYNAPSE_SERVER_NAME=matrix.yourdomain.com -e SYNAPSE_REPORT_STATS=yes #matrixdotorg/synapse:v1.60.0 generate

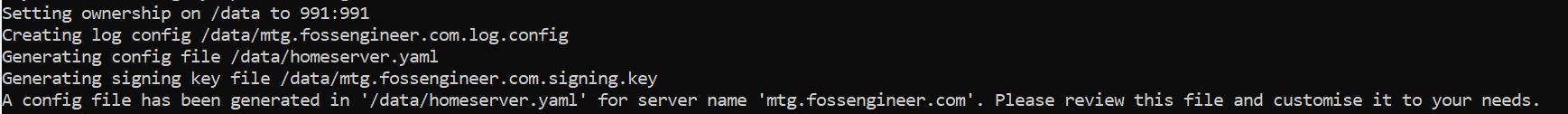

You will see a message like this in the terminal, indicating that it went fine:

Message after successfully creating Matrix Server Configuration

After this step, you will see that a new folder called data has been created and inside of it, we can further customize the Matrix server settings:

cd data
ls
nano homeserver.yaml

In this configuration file, you can include trusted Matrix Servers, allow (or block) new registrations…
Now, we can create the configuration file for the docker container. If you want you can continue using the terminal and:

sudo nano docker-compose.yml

You can paste there the configuration below, and execute the CLI command below (or just use Portainer with a Stack if you are tired of the terminal at this point).

sudo docker-compose up -d #to spin-up the docker matrix container

All steps up to this points are common, now you just need to choose how you want to try your matrix messaging server:

Local access only: great for testing that everything works
Hosted and expose with an NGINX Proxy
Hosted and exposed with Cloudflare Tunnel: Selfhost a matrix server at home and expose it publically with Cloudflare for free, so that other people can access it securely. This is my favourite option.

Deploy Matrix Server with Docker - Locally

To try it locally, we just need to use this Docker configuration file. It will automatically pull the latest version of the Synapse Server that will run Matrix for us:

version: "3.3"

services:
    synapse:
        image: "matrixdotorg/synapse:latest"
        container_name: "matrix_synapse"
        ports:
            - 9999:8008
        volumes:
            - "./data:/data" #it will look at the current directory where you save the file and look for the data folder inside
        environment:
            VIRTUAL_HOST: "matrix.yourdomain.com"
            VIRTUAL_PORT: 8008
            LETSENCRYPT_HOST: "matrix.yourdomain.com"
            SYNAPSE_SERVER_NAME: "matrix.yourdomain.com"
            SYNAPSE_REPORT_STATS: "yes"

If you apply docker-compose up -d, wait and see that the container will stop. When reading the container logs, it states that: The synapse docker image no longer supports generating a config file on-the-fly. That means, that you have to read the previous steps and generate proper Matrix server config files as expleined above with:

sudo docker run -it --rm -v ~/Docker/synapse/data:/data -e SYNAPSE_SERVER_NAME=mtg.fossengineer.com -e SYNAPSE_REPORT_STATS=yes matrixdotorg/synapse:latest generate

If the latest version of the image does not work, you can try a previous one for this matter. This happened to me and was getting confused about the source of the error (but most of the times latest will be OK).

sudo docker run -it --rm -v ~/Docker/synapse/data:/data -e SYNAPSE_SERVER_NAME=mtg.fossengineer.com -e SYNAPSE_REPORT_STATS=yes matrixdotorg/synapse:v1.60.0 generate

You can check locally that everything went OK at http://localhost:9999.

Deploy Matrix Server in Docker - Behind an NGINX Proxy

Get ready your NGINX docker container to expose service as we did during this post with a step by step guide.

Then, simply use the nginx network together during the matrix docker installation:

version: "3.3"

services:
    synapse:
        image: "matrixdotorg/synapse:latest"
        container_name: "synapse"
        volumes:
            - "./data:/data" #or specifically /home/Docker/Matrix_Synapse
        ports:
            - 9999:8008
        environment:
            VIRTUAL_HOST: "matrix.yourdomain.com"
            VIRTUAL_PORT: 8008
            LETSENCRYPT_HOST: "matrix.yourdomain.com"
            SYNAPSE_SERVER_NAME: "matrix.yourdomain.com"
            SYNAPSE_REPORT_STATS: "yes"
        networks: ["nginx_default"]


networks:
    nginx_default:
        external: true

You should be able to see that Matrix is running at http://localhost:9999.

This worked for me hosting Matrix in the Cloud (just make sure that the firewall ports are properly configured).

You can do the some from your home, make sure that Port Forwarding in your router is properly configured.

Deploy and Expose Matrix Server - Through Cloudflare Tunnel

First, get familiar with the Cloudflare Docker setup, as covered during the guide to expose your services securely with Cloudflare Zero Trust Tunnel.

Once you have that ready, simply use the tunnel network that connects our matrix-synapse instance to the Cloudflare tunnel during the installation with docker-compose.

With this configuration, the Matrix Server will be exposed safely to the internet (without sharing your public IP Address):

version: "3.3"

services:
    synapse: #service name, for cloudflare UI
        image: "matrixdotorg/synapse:latest"
        container_name: "matrix_synapse"
        volumes:
            - "./data:/data" #or specifically /home/Docker/Matrix_Synapse
        ports:
            - 9999:8008
        environment:
            VIRTUAL_HOST: "matrix.yourdomain.com"
            VIRTUAL_PORT: 8008
            LETSENCRYPT_HOST: "matrix.yourdomain.com"
            SYNAPSE_SERVER_NAME: "matrix.yourdomain.com"
            SYNAPSE_REPORT_STATS: "yes"
        networks: ["tunnel"] #make sure that tunnel is the name of your cloudflare network and adjust accordingly


networks:
    tunnel: #adjust if needed to your Cloudflare container network's name
        external: true

Or alternatively, you can connect it with:

docker network connect tunnel synapse

Remember to go back to the one dash cloudflare UI:

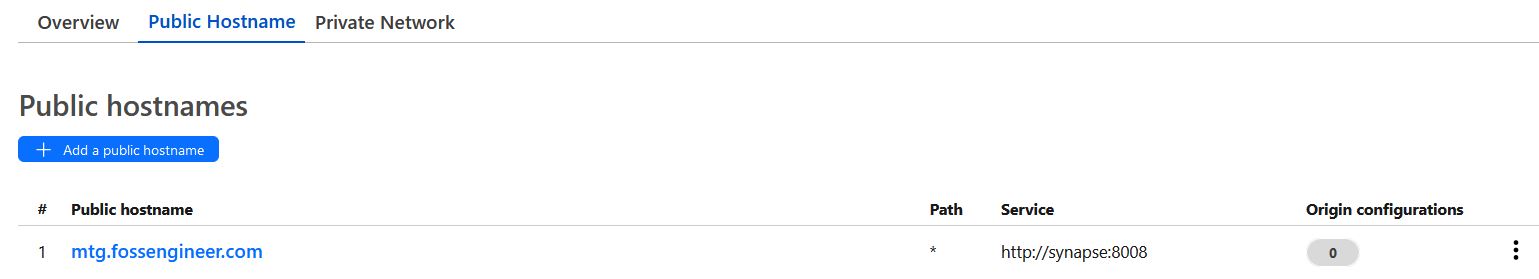

Add a Public Hostname in the Cloudflare web UI
- Select the desired subdomain, domain and path (where applicable)
- Then, add proxy host for example: synapse:8008 (synapse here is the name of the service as we configured it on the yml)

Adding our Matrix synapse server to Cloudflare UI

After this step, your service is already protected with HTTPS and accesible through the internet in the desired subdomain.yourdomain.com.

This is my favourite way of using my Matrix Server instance, as your home IP Address will be hidden thanks to Cloudflare Zero Trust Tunnel.

Clients: Connecting to Our Matrix Server

There are many flavours to connect to our Matrix Server:

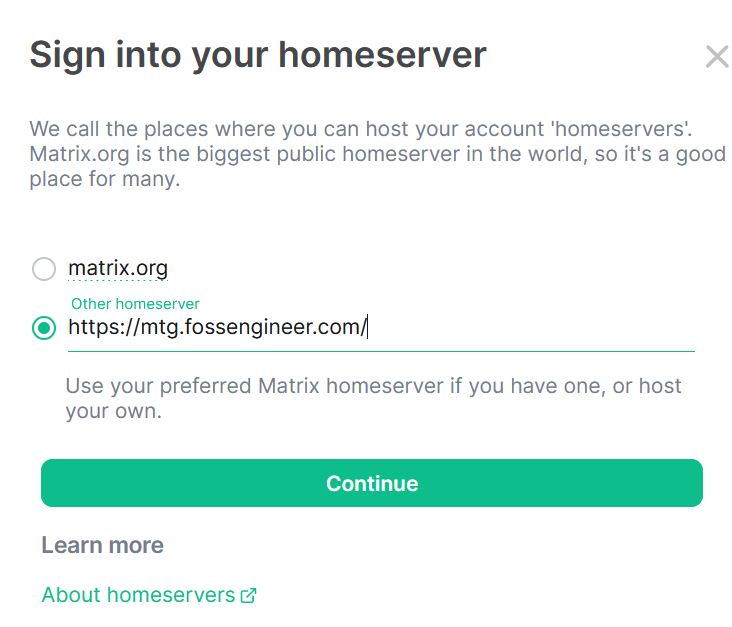

Element (there is also a fantastic mobile app and linux client).

Using Element with our SelfHosted Matrix server

Remember, you can join to other’s Matrix Servers as well!

Each Matrix homeserver has a public room directory, which is accessible to the users of that homeserver or, if enabled, users of other homeservers as well.

FAQ

Allow Registrations in Matrix Synapse Server

As per the latest matrix documentation, you will need to add the following values to the homeserver.yaml file allow registrations:

enable_registration: true
enable_registration_without_verification: true

For a small public server (family, friends, colleagues) - I would recommend to disable registrations once everyone is onboard.

IMPORTANT: Make sure that you read the documentation properly and set this up according to your preferences.

Modifying the homeserver.yaml to allow registrations

From the terminal:

cd /synapse/data
nano homeserver.yaml

From the container’s interactive terminal:

apt-get update
apt-get install nano
cd /data
nano homeserver.yaml

Where can I check public Matrix Servers?

Some people like to share their matrix servers, so that anyone can join freely and making the network more decentralized.

Here you can find a list of several Matrix Servers:.

To help you decide which Matrix servers:
- Think about what you’re passionate about. Matrix servers cater to a wide range of interests, from multipurpose platforms to those focused on niche subjects like tech, gaming, or coding.
- Look for servers with a code of conduct. A code of conduct outlines the standards for acceptable and unacceptable actions within a community. Servers with a code of conduct are more likely to be welcoming and inclusive spaces.

How can I contribute?
